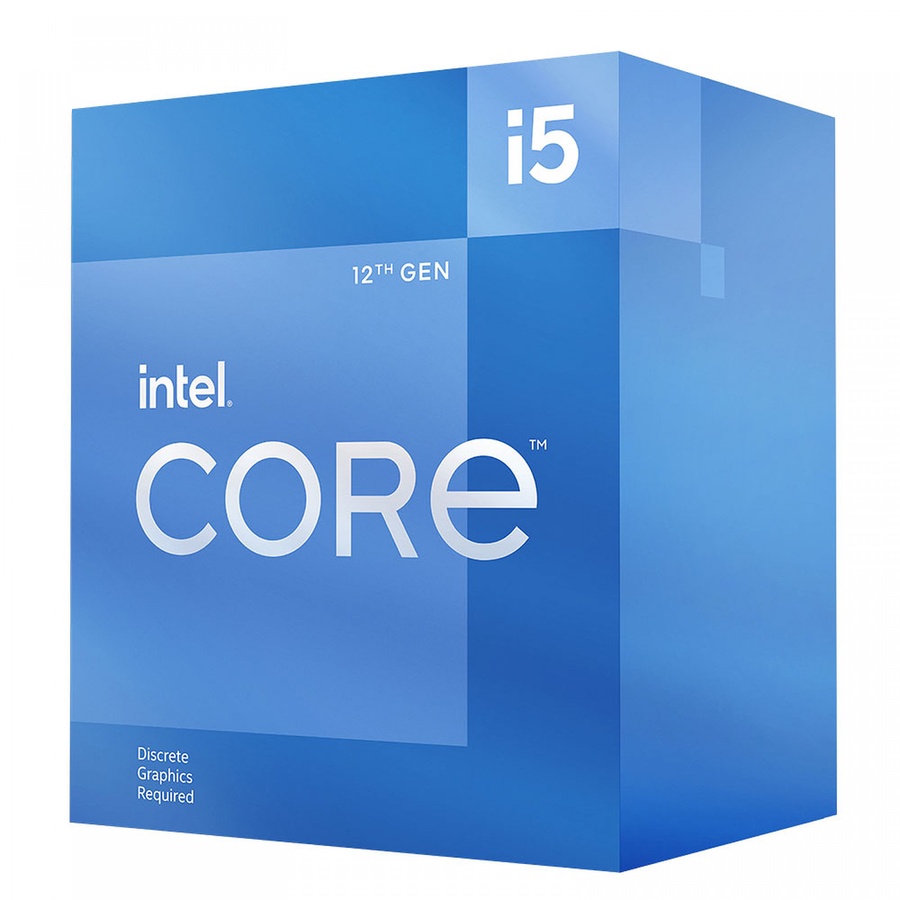

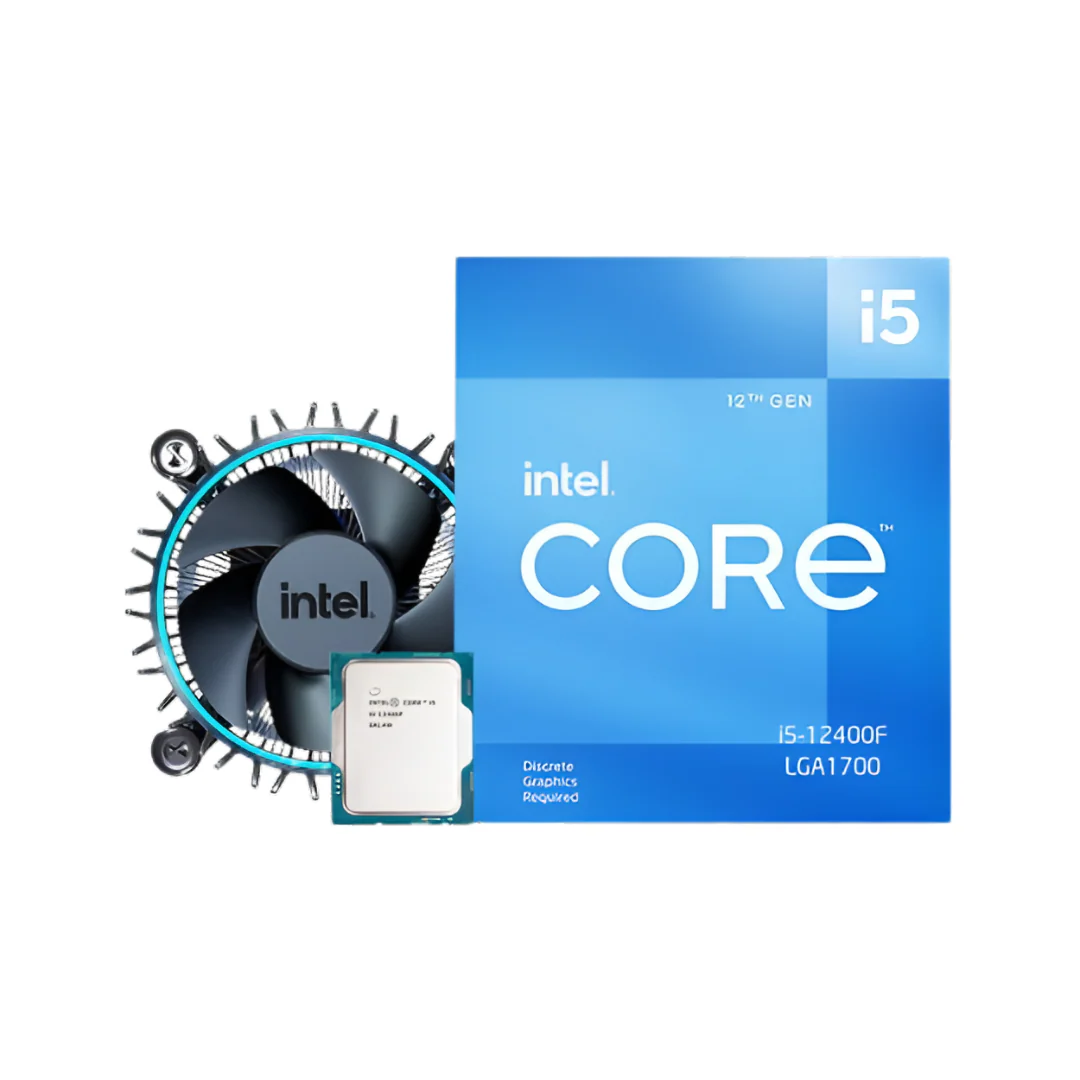

Intel® Core™ i5-12400F Processor 6 Core 12 Thread Up To 4.4GHz LGA1700

Core i5 12400F

18M Cache, up to 4.40 GHz

Specifications

Export specifications

Essentials

  Product Collection 12th Generation Intel® Core™ i5 Processors

  Code NameProducts formerly Alder Lake

  Vertical SegmentDesktop

  Processor Numberi5-12400F

  StatusLaunched

  Launch DateQ1’22

  LithographyIntel 7

  Use ConditionsPC/Client/Tablet

  Recommended Customer Price$167.00 – $174.00

CPU Specifications

Core i5 12400F

  Total Cores6

  # of Performance-cores6

  # of Efficient-cores0

  Total Threads12

  Max Turbo Frequency4.40 GHz

  Performance-core Max Turbo Frequency4.40 GHz

  Performance-core Base Frequency2.50 GHz

  Cache18 MB Intel® Smart Cache

  Total L2 Cache7.5 MB

  Processor Base Power65 W

  Maximum Turbo Power117 W

Supplemental Information

  Embedded Options AvailableNo

  DatasheetView now

Memory Specifications

Core i5 12400F

  Max Memory Size (dependent on memory type)128 GB

  Memory TypesUp to DDR5 4800 MT/s

  Up to DDR4 3200 MT/s

  Max # of Memory Channels2

  Max Memory Bandwidth76.8 GB/s

Expansion Options

  Direct Media Interface (DMI) Revision4.0

  Max # of DMI Lanes8

  Scalability1S Only

  PCI Express Revision5.0 and 4.0

  PCI Express Configurations ‡Up to 1×16+4, 2×8+4

  Max # of PCI Express Lanes20

Package Specifications

  Sockets SupportedFCLGA1700

  Max CPU Configuration1

  Thermal Solution SpecificationPCG 2020C

  TJUNCTION100°C

  Package Size45.0 mm x 37.5 mm

Advanced Technologies

  Intel® Gaussian & Neural Accelerator3.0

  Intel® Thread DirectorNo

  Intel® Deep Learning Boost (Intel® DL Boost)Yes

  Intel® Optane™ Memory Supported ‡Yes

  Intel® Speed Shift TechnologyYes

  Intel® Turbo Boost Max Technology 3.0 ‡No

  Intel® Turbo Boost Technology ‡2.0

  Intel® Hyper-Threading Technology ‡Yes

Core i5 00

  Intel® 64 ‡Yes

  Instruction Set64-bit

  Instruction Set ExtensionsIntel® SSE4.1, Intel® SSE4.2, Intel® AVX2

  Idle StatesYes

  Enhanced Intel SpeedStep® TechnologyYes

  Thermal Monitoring TechnologiesYes

  Intel® Volume Management Device (VMD)Yes

Security & Reliability

  Intel® Standard Manageability (ISM) ‡Yes

  Intel® AES New InstructionsYes

  Secure KeyYes

  Intel® OS GuardYes

  Execute Disable Bit ‡Yes

  Intel® Boot GuardYes

  Mode-based Execute Control (MBEC)Yes

  Intel® Control-Flow Enforcement TechnologyYes

  Intel® Virtualization Technology (VT-x) ‡Yes

  Intel® Virtualization Technology for Directed I/O (VT-d) ‡Yes

  Intel® VT-x with Extended Page Tables (EPT)
